Product Description
Compressor Flow Controller Right To Left
Reduce energy consumption
Nitrile seals for high level of chemical resistance
Single powder-coated steel chassis through product range for consistent footprint and enhanced durability
NPT threads allow unit to connect easily into new or existing piping systems
Tamper proof dial centrally located for quick adjustment and easy calibration
Balanced valve design provides immediate response to changes in air demand
Glycol filled, dual stainless steel gauge design for easy inlet and outlet pressure readings
Can be mounted directly to the wall or on your threaded air line
Will bleed air if air pressure in piping rises above the set point(on output side of flow controller)
Specs:
1/2″ NPT(F)
Max Inlet Pressure: 300 PSIG
Output Control Range: 0-160 PSIG
Max Air Flow: 75 CFM
Max Operating Temp Range: -4 to 176° F
Sensitivity: 0.2% of full span
Repeatability: ± 0.5% of full span
Right to Left air flow(Not field reversible)
Dimensions:
A = 8.11″
B = 7.28″
C = 8.57″
D = 7.36″
E = 1.89″
- Brand New Item -
Part Number: CHX75-RL
90 Day
Warranty Included!
-----------------------------------------------------
1 Factory
Radio is proud to introduce our line of liquidation listings! These are
new items that are priced to move. Any cosmetic blemishes are noted in
the condition field so please keep that in mind when purchasing. All
items are guaranteed to be in 100% working order with our standard 30
day return and 90 day warranty so you’ll still be covered by our
top-notch customer service. We’ll be adding new listings to this line
every day at limited quantities so be sure to bookmark and keep watch
for more great deals!
-----------------------------------------------------

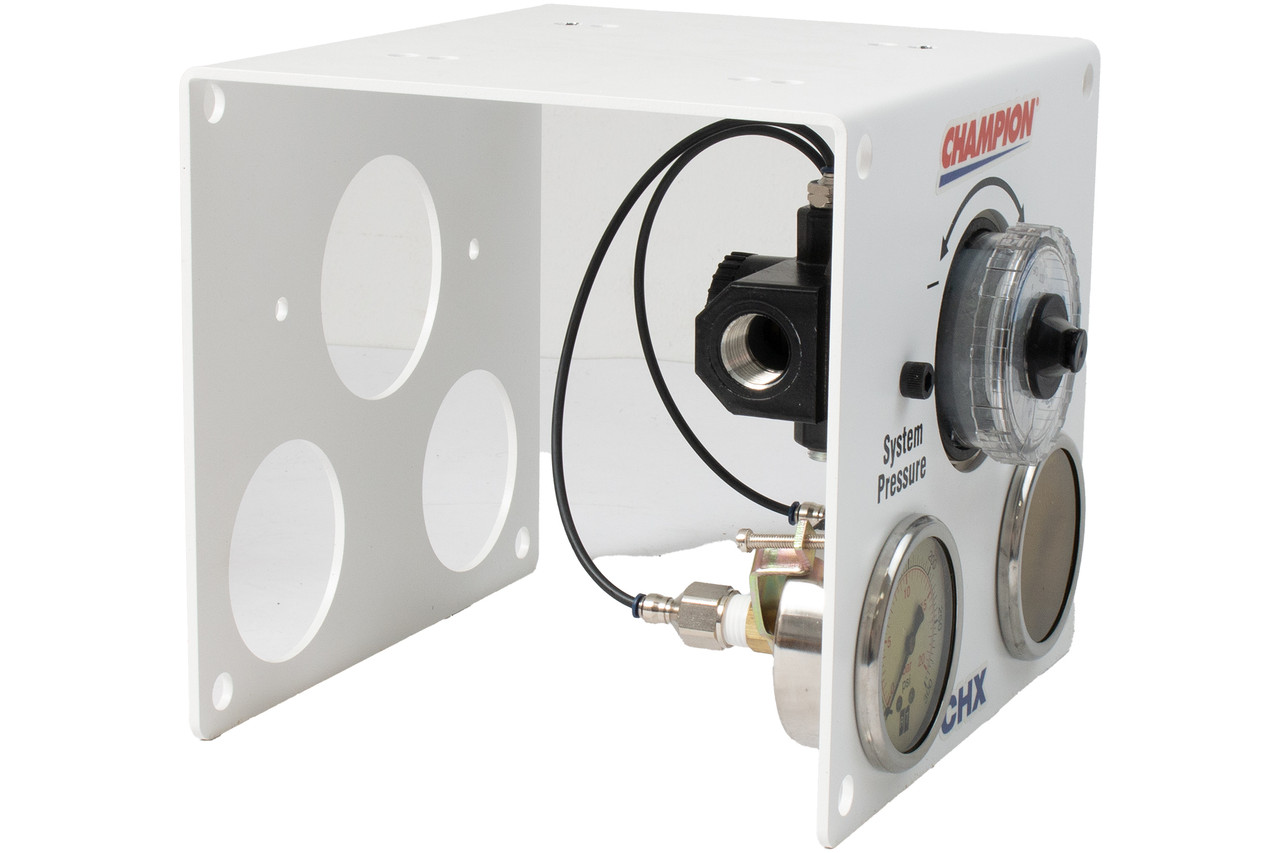

This is a Champion Flow Controller Right To
Left. This product is universal
and compatible with all vehicles. This item is in NEW
condition, with all items included unless otherwise
listed. Please see photos for details.
As you can see from our reviews, we package and ship everything very
carefully. If you have any questions about any item listed, please do
not hesitate to reach out.
Thank You for Your Purchase!
